SKINFITTING 1.5 INCH

Description

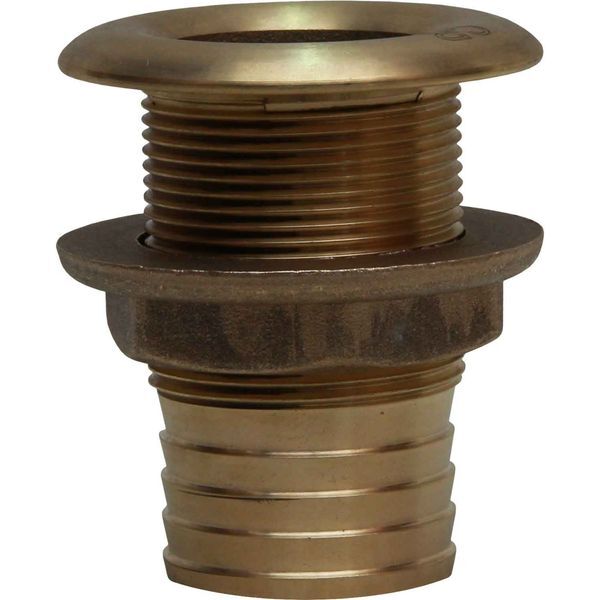

Maestrini hose tail skin fitting made from dezincification resistant brass (DZR), also known as CR brass which stands for corrosion resistant. This material is a brass alloy which prevents corrosion, caused by the loss of zinc in the fitting, making it suitable for exposure to sea water. This skin fitting connects to a hose and is designed for through hull applications. Skin fitting is also supplied with a brass locking nut and washer.

Please Note: All fittings used for through hull applications must be correctly electrically bonded to ensure protection from electrolytic corrosion. DZR is suitable for below waterline through hull applications.

Material Corrosion Resistant (CR), Dezincification Resistant Brass (DZR)
Fitting Skin Fitting
Hose Tail Size 44mm / 1-3/4"
Outlet Design Skin Fittings
Primary Construction DZR / CR Brass
Thread Connection BSP
Thread Fitting Size 1-1/2"
Thread Gender Male
Pressure Rating 363 PSI (25 Bar)
Shape Description Domed Head
Thread Size 1-1/2" BSP Male Parallel
Brand Maestrini
Length Total: 84.5mm, Thread: 45mm, Hose: 30mm
Diameter Description 72mm Head, ID: 34mm
Country of Origin Italy
Angle Straight
