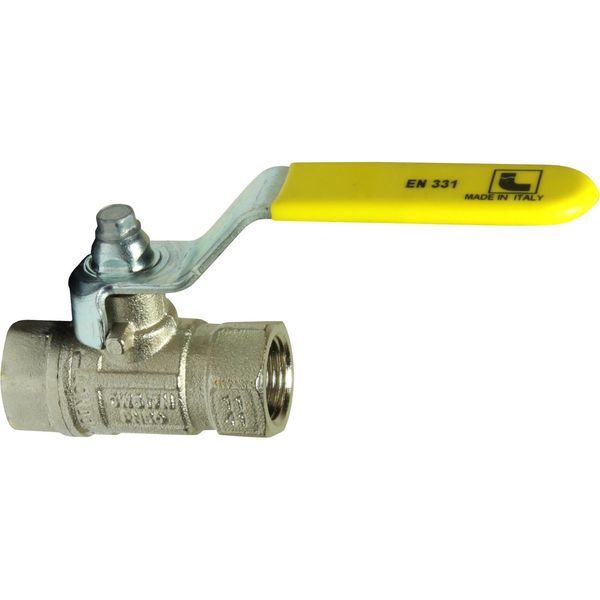

BALL VALVE 3/8 INCH

£9.12

Ball Valve FF (Lever) 3/8inch BSP

1-70910P

Availability: 2 in stock SKU: 3508246 Category:

Description

A quality Italian made, high specification ball valve. Ideal for Gas. Also suitable for hot and cold water. compressed air, pneumatic, hydraulic and most industrial fluids.

Features:

Quarter turn operation

100% full bore

Individually Tested

EN331 approved

Materials:

Body: Nickel plated brass CW 617N

Ball: Hard chrome-plated brass CW 617N

Stem: Brass CW 614N

Seal: Pure Teflon (PTFE)

O Rings: Viton / NBR

Lever Handle: Yellow coated zinc-plated steel Fe. P04

Tee Handle: Yellow coated aluminium UNI 5076

Working Temperatures:

-20 Degrees C to +60 Degrees C

WARNING the formation of ice can severely damage valves & piping

Technical Specification

Male: BSP Taper Thread – ISO 7/1R BS21 DIN 2999

Female BSP Parallel Thread ISO 7/1R BS21 DIN 2999 (equivalent to DIN EN 10226-1 and BS EN 10266-1)

Bar* – Pressure Atmosphere Kg/cm Cubed

PSI* – LBS Working Pressure
