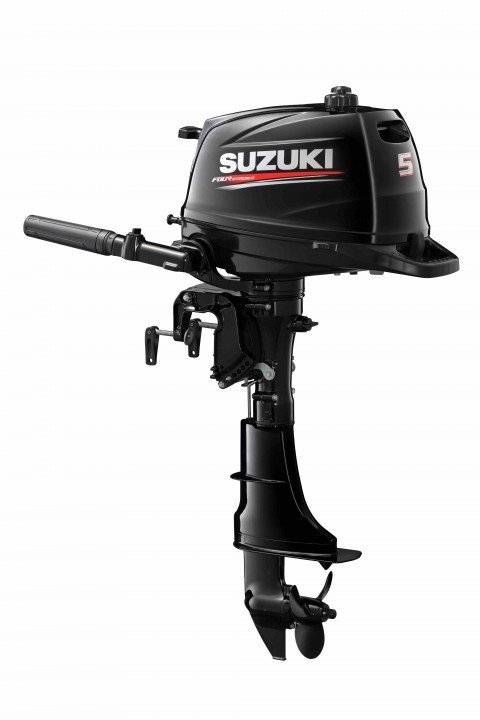

SUZUKI DF5AL

Description

DIMENSIONS AND WEIGHT
Recommended transom height: S:381mm (15in) L: 508mm (20in)
Weight: S:24.0kg L:25.0kg
Bore x Stroke: 60.4 x 48mm
ENGINE SPECIFICATION
Starting System: Manual
Engine Type: OHV
Fuel Delivery System: Carburettor
No. of Cylinders: 1
Piston Displacement: 138cc
Maximum Output: 3.7KW
Full Throttle Operating Range: 4,500 – 5,500
Steering: Tiller
Oil Pan Capacity: 0.7L
Fuel Tank Capacity: Integral 1.0L
Ignition System: Digital CDI
Alternator: 12V 6A (optional)
Engine Mounting: Bushing Type
Trim Method: Manual
Gear Ratio: 1.92:1
Gear Shift: F-N-R
Exhaust: Above Prop Exhaust
